Commercial Retaining Walls in Kansas City, MO

Reliable, professional commercial masonry retaining walls in Kansas City, MO from Legendary Masonry Kansas City. Contact us today for a free on-site estimate.

Legendary Masonry Kansas City provides professional commercial masonry retaining walls throughout Kansas City, MO, Missouri and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call 816-431-8933 or request your free quote.

Commercial retaining walls built for Kansas City properties

Commercial masonry retaining walls are not just about holding dirt back. On Kansas City properties they control drainage, protect foundations, create usable parking or loading space, and keep sidewalks and public areas safe. At Legendary Masonry Kansas City we design each wall around how your site is actually used: truck traffic, pedestrian flow, landscaping plans, and how stormwater moves across your lot.

For local businesses, schools, churches, and municipalities, that usually starts with a site walk. We look at existing slopes, nearby structures, pavement edges, and any current cracking or settlement. We note where water collects after a typical Kansas City thunderstorm and how snow melt will run in late winter. From there we can tell you whether you need a gravity wall, a reinforced segmental system, or a poured or block masonry wall with geogrid reinforcement.

Instead of selling a one-size-fits-all product, Legendary Masonry Kansas City explains what is actually required to keep your hill or parking lot stable long term, including realistic heights, setbacks, and drainage details.

Materials and structural options for commercial masonry retaining walls

Most commercial masonry retaining walls in Kansas City fall into a few proven types, each with its own cost, look, and load capacity. We walk you through them so you understand what you are approving on your plans.

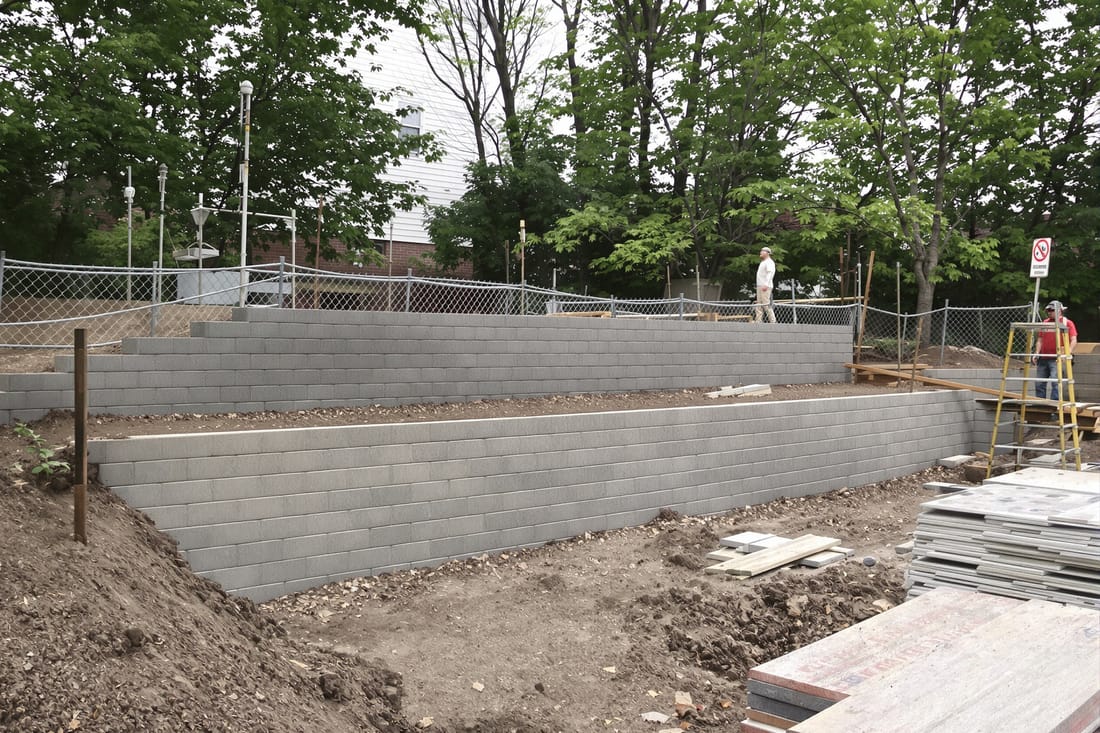

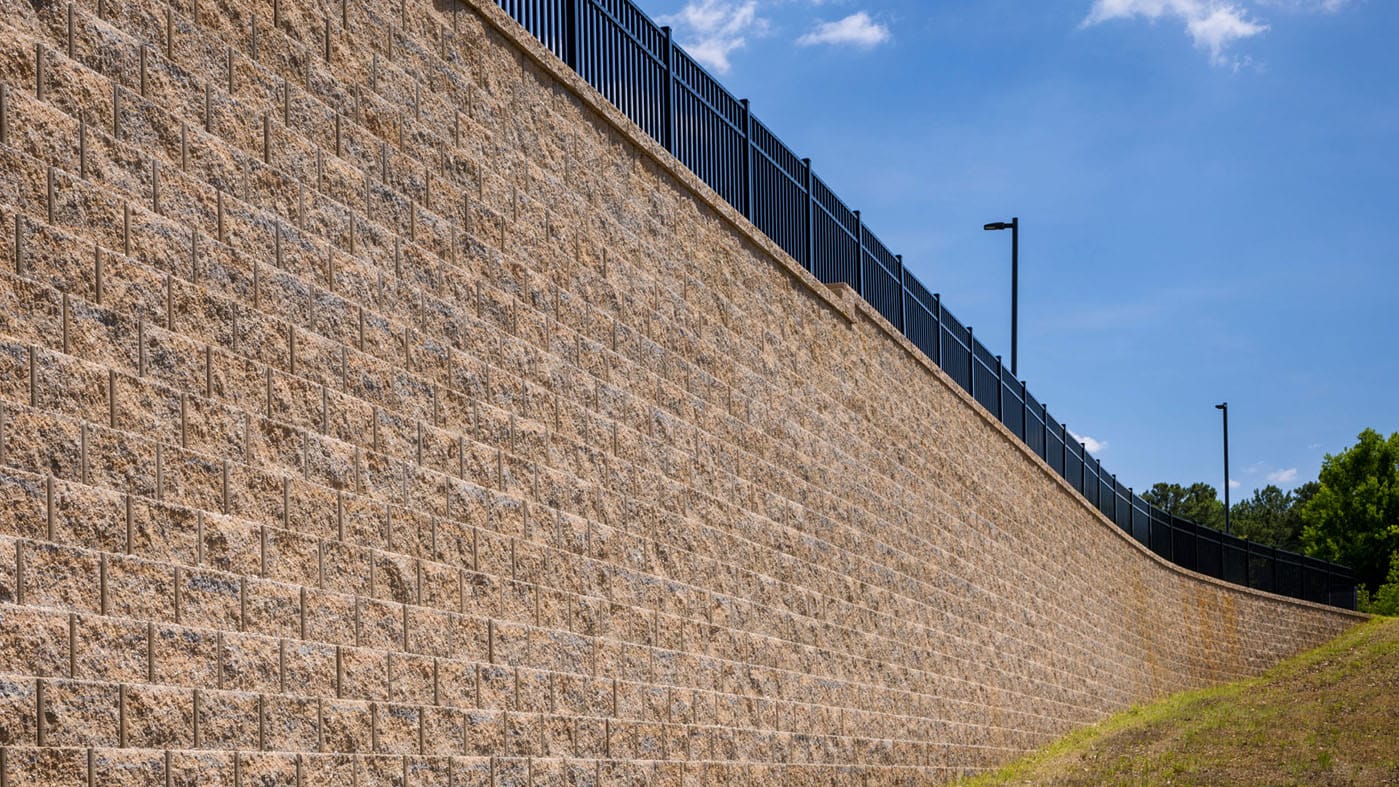

Segmental block retaining walls use interlocking concrete units stacked in courses, often with geogrid extending back into the soil. These are ideal along parking lots, drive lanes, and around commercial building pads because they are relatively fast to install, can handle curves and tiered designs, and individual units can be replaced if damaged. We specify block systems that are rated for freeze-thaw cycles and deicing salts common on Kansas City commercial lots.

Cast-in-place concrete or CMU (concrete masonry unit) walls with a brick or stone veneer are better when you need a very slim wall next to a building, loading dock, or property line. The structural wall is reinforced concrete or grouted block, and the visible surface can be brick to match your storefront, split-face block for a utilitarian look, or natural stone where aesthetics are important, like at an office park entrance.

For high walls or walls supporting heavy surcharge loads such as truck bays, container storage, or stacked materials, we typically combine masonry facing with geogrid soil reinforcement and engineered drainage blankets. Legendary Masonry Kansas City works with local structural and geotechnical engineers when required, so the wall design matches the actual soil conditions underneath your site, not just a generic detail from a catalog.

How we design and build retaining walls that survive Kansas City weather

Kansas City’s freeze-thaw cycles, clay soils, and occasionally intense downpours are hard on retaining walls. Most failures we are called to inspect come from poor drainage and lack of reinforcement, not from the visible masonry itself. Legendary Masonry Kansas City focuses heavily on what you do not see behind and under the wall.

Our typical build process starts with excavation to the design depth, then we proof roll and compact the subgrade. On clay soils that pump under load, we may over-excavate and bring in compacted crushed rock to create a stable base. We install a leveling pad, usually compacted aggregate or concrete, then begin the wall in carefully leveled first-course units or forms.

Behind the wall we place free-draining aggregate, perforated drainpipe at the base, and geogrid layers at specified elevations and lengths. The grid is rolled out into compacted backfill at specific tensions, which is what actually holds taller commercial masonry retaining walls in place against long-term pressure. We slope or connect the drain outlets to storm structures or daylight points that do not freeze easily. All of this is done with Kansas City weather in mind, so water has a clear path away from the wall during heavy spring storms and rapid freeze-thaw periods.

We also plan construction timing around local seasons. Heavy structural work and backfilling are best done when the ground is not saturated or frozen. For most Kansas City commercial projects that means targeting late spring through fall for major excavation and wall building, with winter reserved for smaller repairs or low-risk portions of phased jobs.

Costs, timelines, and what drives your budget

Commercial masonry retaining walls vary widely in price, and understanding what drives cost will help you budget and evaluate bids fairly. Legendary Masonry Kansas City prices are based on more than wall height. Length, access, soil conditions, surcharge loads, drainage requirements, and finishes all matter.

Height and surcharge loads are usually the largest factors. A 3 foot decorative wall along a sidewalk is much simpler and cheaper than a 10 foot wall holding up a truck driveway. Taller and loaded walls require engineering, more geogrid, more drainage stone, and sometimes thicker blocks or reinforced concrete. Poor soils that require undercut and replacement, or drilled piers where slopes are extreme, also add cost.

Access makes a big difference on Kansas City infill sites. If we can reach the wall with standard excavators and haul trucks, pricing is far lower than a downtown or tight-side-yard location that needs small machinery, hand work, or crane service. Night or off-hours work around operating businesses adds labor cost but may be necessary for safety and traffic control.

Timelines depend on design approvals, permitting, and coordination with other trades like utilities and paving. On a typical small commercial project, once plans are approved, a 50 to 100 foot wall might take 3 to 10 working days on-site, depending on height and complexity. Larger walls or multiple phases are scheduled to line up with grading, utility trenching, and asphalt or concrete paving so you do not pay for rework. We keep you updated on schedule impacts from rain, which is common in Kansas City spring and early summer.

What to look for in a contractor and how Legendary Masonry Kansas City works with you

A commercial retaining wall is a long-term structure that should outlast most other site improvements. When you choose a contractor in Kansas City, focus on practical experience with similar wall heights, soil types, and site uses, not just the lowest number on a bid sheet.

Ask to see previous commercial masonry retaining walls that contractor built in the Kansas City area and how long they have been in service. Look for walls that are straight, with even joints, consistent step-downs, and no signs of bulging, long vertical cracks, or water staining. Ask how they manage drainage, what block or masonry systems they are certified to install, and whether they coordinate directly with your engineer or rely on generic manufacturer details.

Legendary Masonry Kansas City provides detailed proposals that spell out wall type, block or masonry system, reinforcement lengths, drainage components, and base preparation. We coordinate early with your civil engineer, architect, or general contractor so the wall aligns with final grades, ADA routes, and utility locations. Change orders are minimized by walking the site with plans in hand before we excavate.

Communication is straightforward. You get a clear point of contact, regular updates during excavation and backfilling, and as-built information that your design team can keep for future expansions. Our goal is simple: commercial masonry retaining walls that perform quietly in the background so your parking lots, buildings, and public spaces stay safe and functional in Kansas City’s real-world conditions.
